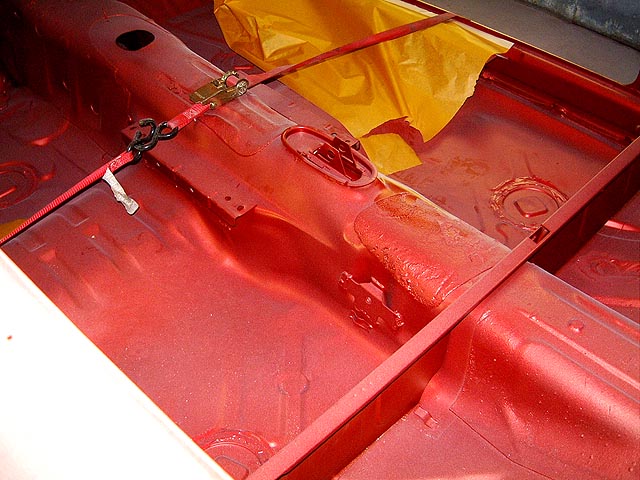

View showing the finished floor drains, the seat belt mounts
and the e-brake handle area. |
 |
|

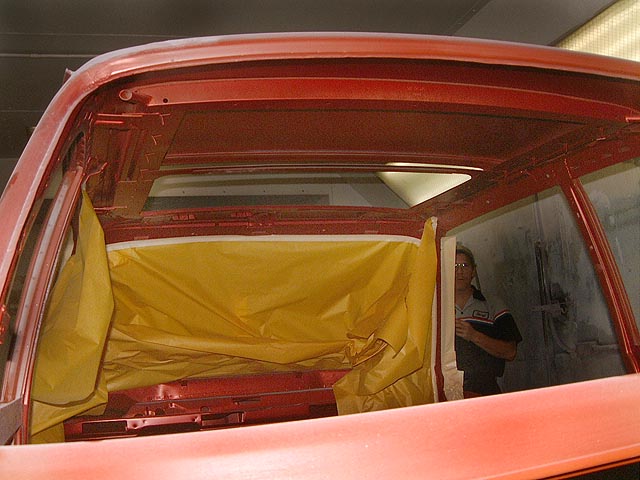

We primed all under the sunroof area. The factory didn't do
such a great job originally. Note the drain tubes. |
 |
|
This shows the front area. The tabs that extend down from the
roof hold a piece of masonite in place. |
 |
|
Pre paint- the epoxy primer view of the floor pans. |
 |
|

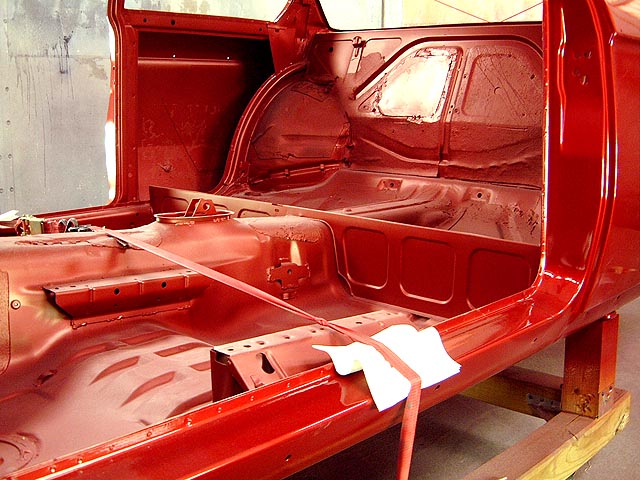

Afterwards, prior to transporting. The paint is all in and
everything is sealed back better than new. |
 |
|

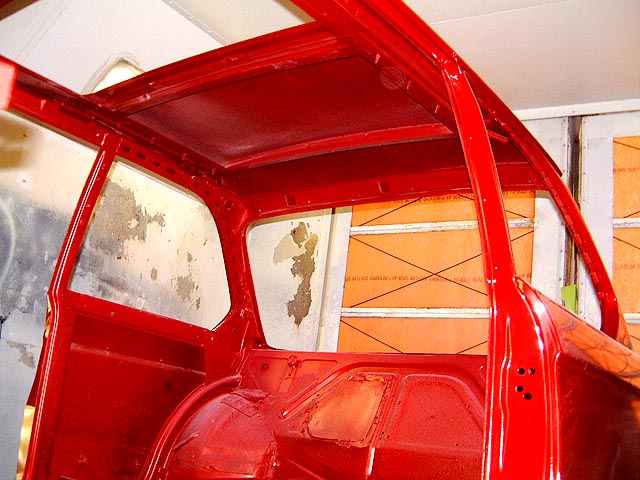

Another view looking up towards the back, showing the rear
section of the sunroof cavity. |
 |
|

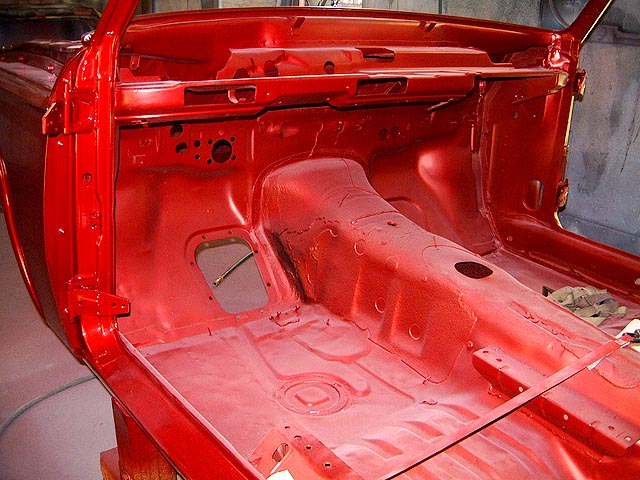

The dashboard structure. |
 |
|

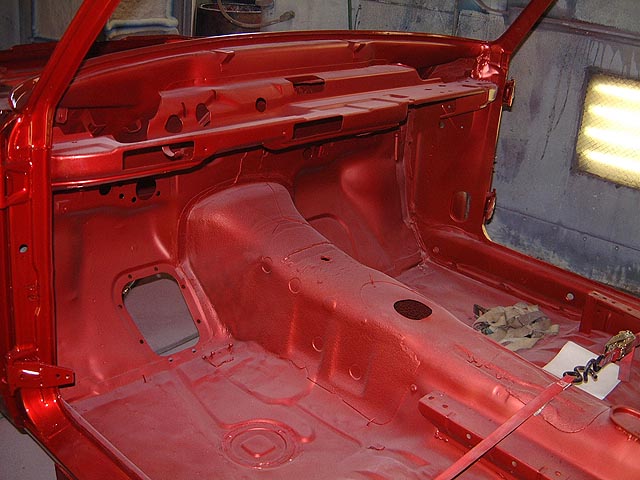

For clarity, here is a lower view showing the passenger
compartment side of the firewall. |
 |
|
The two holes over the passenger side foot well on the
firewall are for A/C hoses. I'm leaving it out. |
